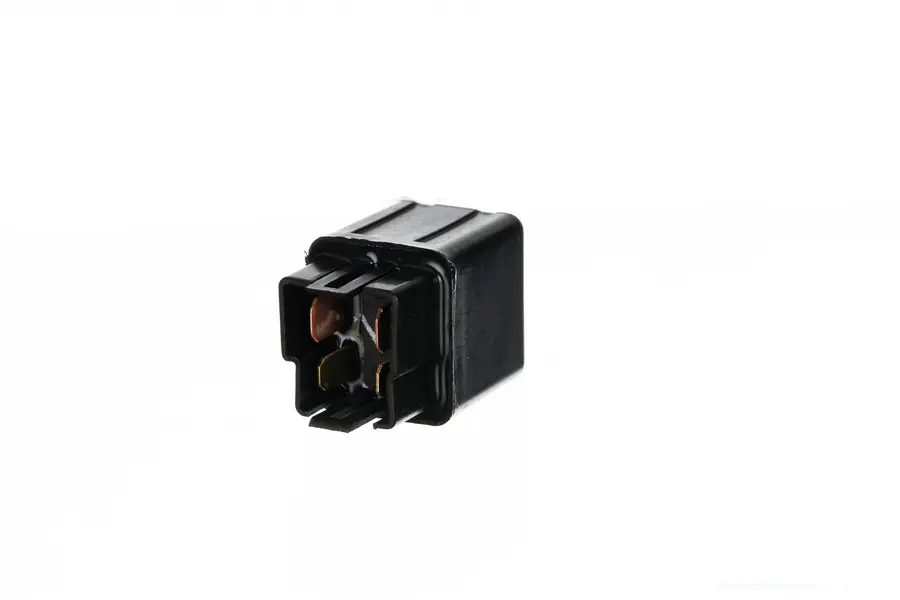

Overview: Introducing the Starter Relay 50A, a reliable and essential component for Hero, Honda, and Yamaha motorcycles and scooters. Key Features: • Compatible with a wide range of models including Maestro, Pleasure, Passion Pro, Splendor Pro, HF Deluxe, Activa 2G, Activa 3G, Activa 125, Dio, Navi, Grazia, Aviator, Ray, and Fascino, this high-quality relay ensures smooth and efficient starting performance. • With a maximum current rating of 50A, it provides the necessary power to kickstart your vehicle’s engine effortlessly. Why Choose This Product? • Trust the Starter Relay 50A to deliver exceptional reliability and durability, making it an ideal choice for your two-wheeler. • Part Code SRA002 Starter Relay 50A Application Brand Hero, Honda, Yamaha Application Vehicle Maestro, Pleasure, Passion Pro, Splendor Pro, HF Deluxe, Activa 2G, Activa 3G, Activa 125, Dio, Navi, Grazia, Aviator, Ray, Fascino OEM Part Code 38501KTP890S,38501KPL901 Technical Specs Contact Form 1A Contact Material Ag Sn O2 Coil Voltage(DC) 12 V, 24V Rated Switching Current 50A/ 14VDC Max Switching Voltage 28VDC Max Switching Current 200A Contact Voltage Drop 300mV Max at 50A Coil Power Consumption 3 W Pull in Voltage Max 8V Max Drop Off Voltage 1~4V Dielectric Strength > 5 MΩ at 500VDC Between Open Contacts 500V AC/1min Between Coil & Contacts 1000V AC/ 1min Insulation Resistance > 10 MΩ at 500VDC Operating Temperature -30° TO + 85°C Operate & Release time < 10ms Endurance Test 50,000 cycle of 5 sec ON & 30 sec OFF with a load current of 50A, 12VDC Terminal Shape Plug- in Dimensions (mm) 51 x 50 x 50 Weight 45grm
