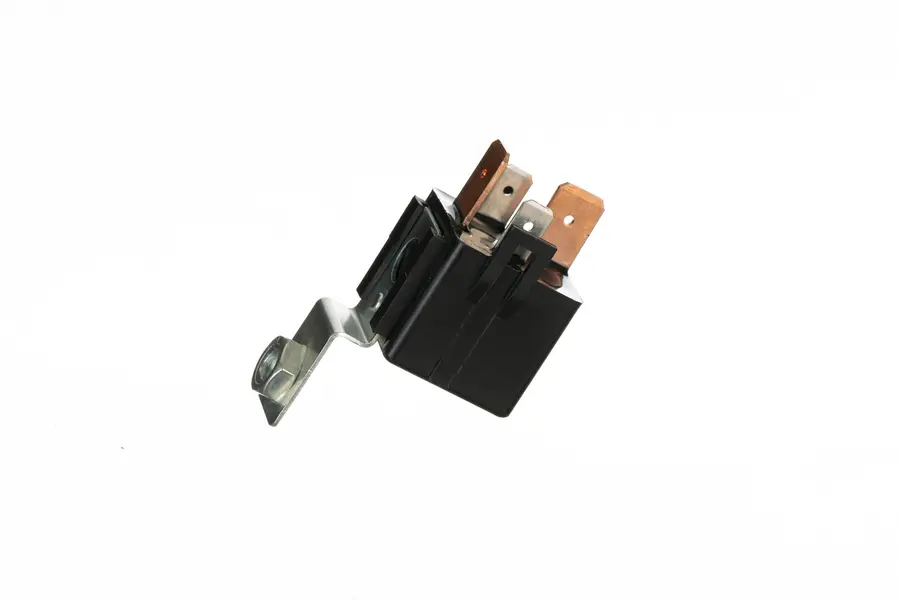

Overview: Introducing the Starter Relay 70A with Bracket & nut, designed specifically for Bajaj Pulsar 220, Pulsar 180 UG3, XCD, and Platina 125 motorcycles. Key Features: • This high-quality relay ensures reliable starting performance, allowing you to kickstart your bike effortlessly. • With a sturdy bracket and nut included, installation becomes a breeze. Why Choose This Product? • Experience enhanced functionality and durability with this Starter Relay, an essential component for your Bajaj motorcycle. • Part Code SRA045 Starter Relay 70A with Bracket & nut Application Brand Bajaj Application Vehicle Pulsar 220, Pulsar 180 UG3, XCD, Platina 125 OEM Part Code DK201016 Technical Specs Contact Form 1A Contact Material Ag Sn O2 Coil Voltage(DC) 12 V, 24V Rated Switching Current 70A/ 14VDC Max Switching Voltage 28VDC Max Switching Current 250A Contact Voltage Drop 300mV Max at 70A Coil Power Consumption 2 W Pull in Voltage Max 8V Max Drop Off Voltage 1~4V Dielectric Strength > 5 MΩ at 500VDC Between Open Contacts 500V AC/1min Between Coil & Contacts 1000V AC/ 1min Insulation Resistance > 10 MΩ at 500VDC Operating Temperature -30° TO + 85°C Operate & Release time < 10ms Endurance Test 50,000 cycle of 5 sec ON & 30 sec OFF with a load current of 70A, 12VDC Terminal Shape Plug- in Dimensions (mm) 62 x 38 x 26 Weight 42 grm
